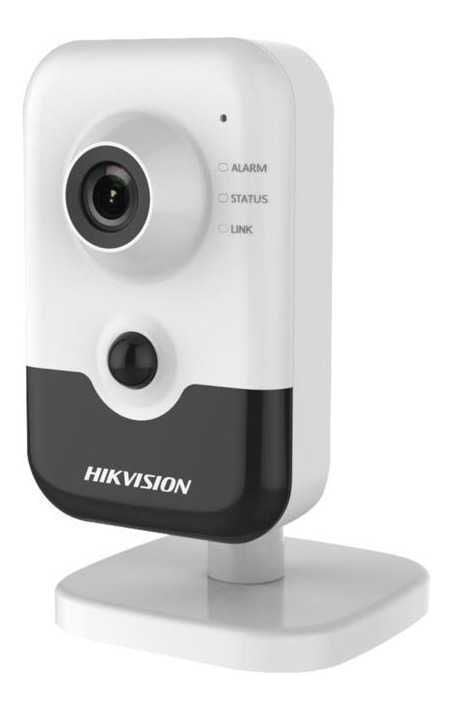

4.0MP 2.8mm H.265+ Ses+SD Kart 10Mt. IR Wi-Fi Küp Kamera DS-2CD2443G0-IW
4.0MP 2.8mm H.265+ Ses+SD Kart 10Mt. IR Wi-Fi Küp Kamera
DS-2CD2443G0-IW
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 2.8/4 mm
Aperture F1.6
FOV 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
Lens Mount M12
IR
IR Range 10 m
Wavelength 850nm
PIR
Angle Horizontal: 90°, Vertical: 80°
PIR Range 10 m
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Smart Feature-set
Smart Event Line crossing detection, intrusion detection, face detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, Email
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 2688 × 1520
Main Stream 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080,
1280 × 720)
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white
balance are adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS
(NFS,SMB/CIFS), ANR
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,
RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP,
Bonjour, SSL/TLS
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password Anti-flicker, three streams, heartbeat, mirror, privacy masks, password
reset via e-mail, pixel counter, HTTP listening
Security Password protection, complicated password, HTTPS encryption, 802.1X
authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address
filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest
authentication for ONVIF, TLS1.2
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local
Service: Chrome 41.0+, Firefox 30.0+
Interface
Audio 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Reset Button Yes
Wi-Fi (-W)
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non- condensing)
Web Client Language 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian,
Danish, Swedish, Norwegian, Finnish, Croatian,
Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
Material Plastic
Dimensions 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Weight Camera: Approx. 128 g (0.3 lb.)
DS-2CD2443G0-IW
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 2.8/4 mm
Aperture F1.6
FOV 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
Lens Mount M12
IR
IR Range 10 m
Wavelength 850nm
PIR
Angle Horizontal: 90°, Vertical: 80°
PIR Range 10 m
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Smart Feature-set
Smart Event Line crossing detection, intrusion detection, face detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, Email
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 2688 × 1520
Main Stream 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080,
1280 × 720)
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white
balance are adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS
(NFS,SMB/CIFS), ANR
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,
RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP,
Bonjour, SSL/TLS
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password Anti-flicker, three streams, heartbeat, mirror, privacy masks, password
reset via e-mail, pixel counter, HTTP listening
Security Password protection, complicated password, HTTPS encryption, 802.1X
authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address
filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest
authentication for ONVIF, TLS1.2
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local
Service: Chrome 41.0+, Firefox 30.0+
Interface
Audio 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Reset Button Yes
Wi-Fi (-W)
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non- condensing)
Web Client Language 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian,
Danish, Swedish, Norwegian, Finnish, Croatian,
Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
Material Plastic
Dimensions 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Weight Camera: Approx. 128 g (0.3 lb.)
