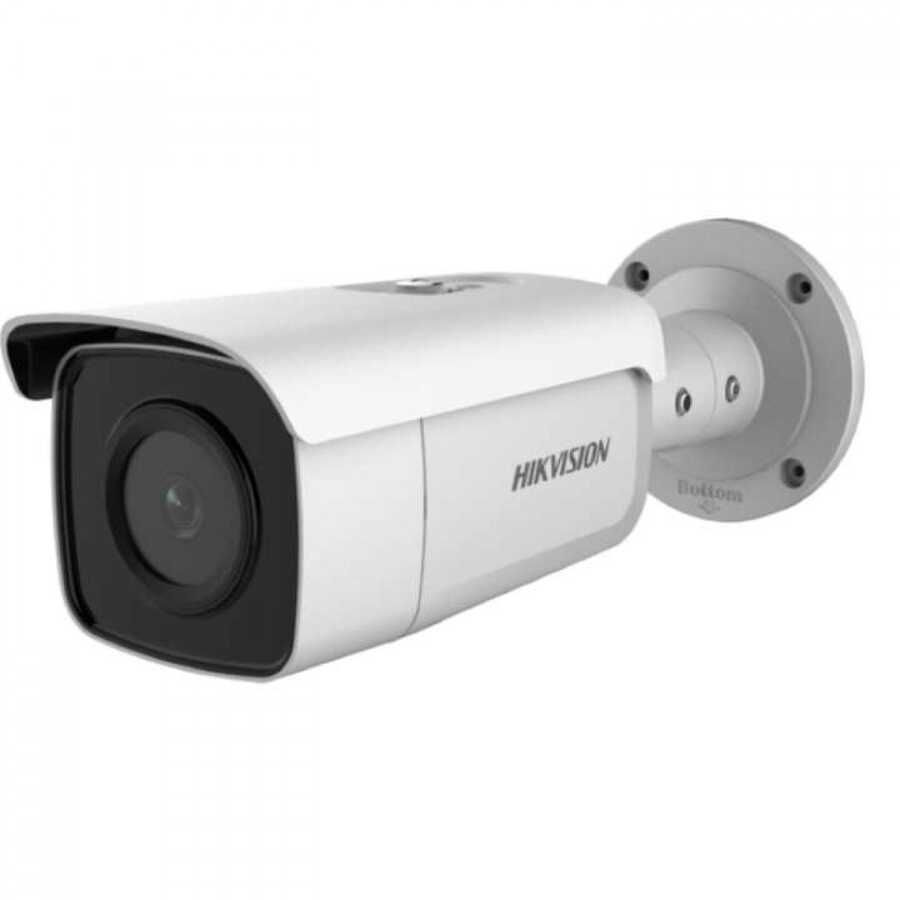

8.0MP 4.0mm H.265+ 30Mt. IR Bullet İP Kamera DS-2CD2T85G1-I5
8.0MP 4.0mm H.265+ 30Mt. IR Bullet İP Kamera
DS-2CD2T85G1-I5
Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Lens 2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°
4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°
6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
Lens Mount M16
Aperture F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3840 × 2160
50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR/HLC
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance
adjustable by client software or web browser
ROI (Region of Interest)
Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch Day/Night/Auto/Schedule
*Note: When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
Network
Network Storage
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail,
pixel counter, HTTP listening
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Security
Password protection, complicated password, HTTPS encryption, 802.1X
authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic
and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200 Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Smart Feature-set
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object
removal detection, face detection, scene change detection
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address
conflict, illegal login, HDD full, HDD error)
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger
captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, Email
General
Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Web Client Language 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption
-I5:
12 VDC, 0.7 A, max: 9 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 11 W
-I8:
12 VDC, 1 A, max: 11 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 12.9 W
IR Range -I5: Up to 50 m
-I8: Up to 80 m
Wavelength 850 nm
Protection Level IP67
Material Front cover: metal, back cover: metal
Dimensions Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)
Weight Camera: 1000 g (2.2 lb.)
With package: 1500 g (3.3 lb.)
Camera Weight Approx. 1090 g (2.4 lb.)
With Package Weight Approx. 1614 g (3.6 lb.)
Linkage Method
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset Yes
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
DS-2CD2T85G1-I5
Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Lens 2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°
4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°
6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
Lens Mount M16
Aperture F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3840 × 2160
50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR/HLC
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance
adjustable by client software or web browser
ROI (Region of Interest)
Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch Day/Night/Auto/Schedule
*Note: When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
Network
Network Storage
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail,
pixel counter, HTTP listening
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Security
Password protection, complicated password, HTTPS encryption, 802.1X
authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic
and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200 Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Smart Feature-set
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object
removal detection, face detection, scene change detection
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address
conflict, illegal login, HDD full, HDD error)
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger
captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, Email
General
Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Web Client Language 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption
-I5:
12 VDC, 0.7 A, max: 9 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 11 W
-I8:
12 VDC, 1 A, max: 11 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 12.9 W
IR Range -I5: Up to 50 m
-I8: Up to 80 m
Wavelength 850 nm
Protection Level IP67
Material Front cover: metal, back cover: metal
Dimensions Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)
Weight Camera: 1000 g (2.2 lb.)
With package: 1500 g (3.3 lb.)
Camera Weight Approx. 1090 g (2.4 lb.)
With Package Weight Approx. 1614 g (3.6 lb.)
Linkage Method
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset Yes
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
