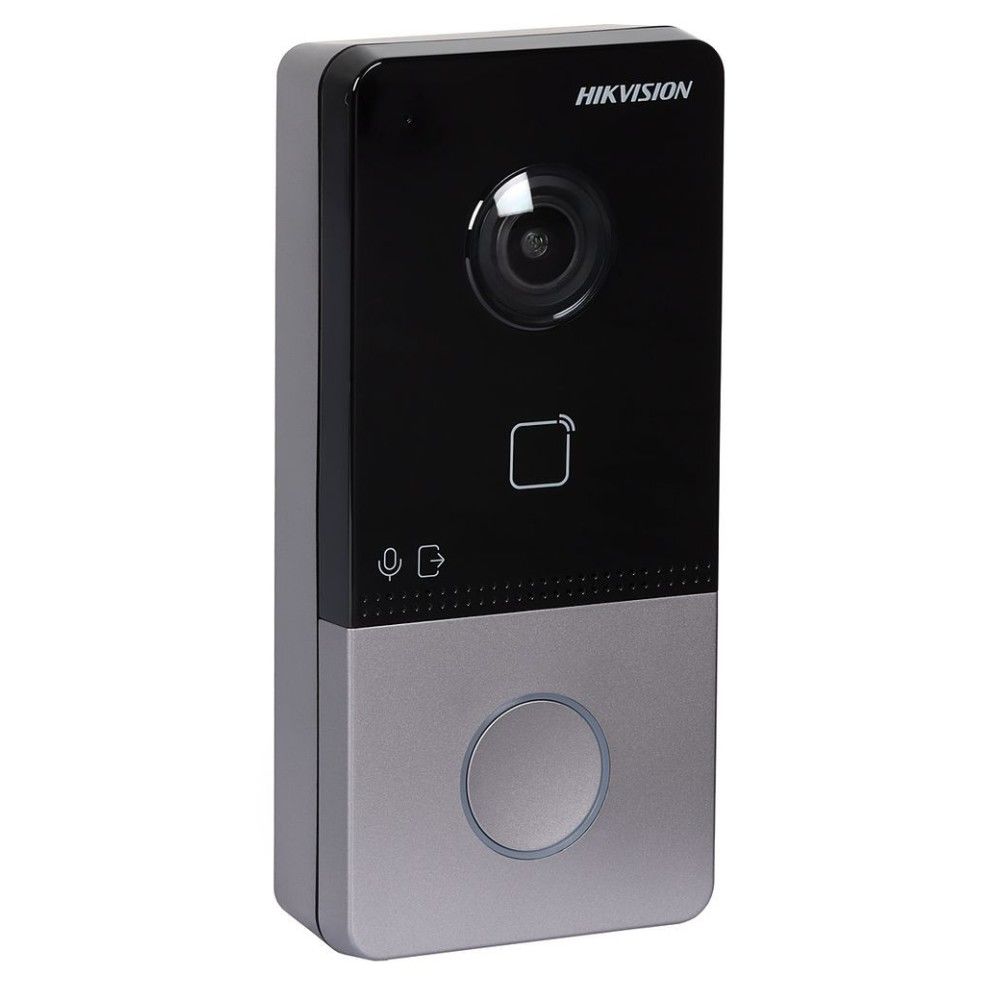

Tek Butonlu Dış Mekan Görüntülü İnterkom Kapı Zili (Wİ-Fİ) DS-KV6113-WPE1
|
Supplement Light |
IR Supplement |
|
Lens |
1 |
|
FOV |
Horizontal: 129° Vertical: 75° |
|
WDR |
True WDR |
|
Resolution |
Main Stream: 1920×1080p, 720p Sub Stream: 704×576 |
|
Audio Parameters |
|
|
Audio Compression Standard |
G.711 U |
|
Audio İnput |
Built-in Omnidirectional Microphone |
|
Audio Output |
Built-in Loudspeaker |
|
Audio Compression Bitrate |
64 Kbps |
|
Audio Quality |
Noise Suppression And Echo Cancellation |
|
Volume Adjustment |
Adjustable |
|
Capacity |
|
|
Fingerprint Capacity |
/ |
|
User Capacity |
2000 |
|
Face Capacity |
/ |
|
Linked İndoor Station |
1 |
|
Event Capacity |
/ |
|
Network Parameters |
|
|
Communication Protocol |
TCP/IP, RTSP |
|
Wired Network |
10/100 Mbps self-adaptive Ethernet |
|
Wi-Fi |
Support |
|
Bluetooth |
/ |
|
3G/4G |
/ |
|
Received Frequency |
2.4 to 2.4835GHz |
|
Transmitted Frequency |
2.4 to 2.4835 GHz |
|
Bandwidth |
20 to 40 MHz |
|
Frequency Power |
802.11b:16dBm +/- 1.5dBm |
|
System Parameters |
|
|
Operation System |
Embedded Linux operation system |
|
Flash |
16 M, 32 M |
|
RAM |
256 M |
|
CPU |
Embedded MCU Processor |
|
Display Parameters |
|
|
Size |
/ |
|
Operation Method |
/ |
|
Type |
/ |
|
Resolution |
/ |
|
Video Parameters |
|
|
Video Compression Standard |
H.264 |
|
Device İnterfaces |
|
|
Alarm İnput |
4 |
|
Network İnterface |
1 |
|
TAMPER |
1 |
|
RS-485 |
1 |
|
Exit button |
1 |
|
USB |
0 |
|
Wiegand |
0 |
|
TF Card |
0 |
|
Alarm Output |
0 |
|
Lock Control |
1 |
|
Door Contact İnput |
1 |
|
Power İnterface |
1 |
|
General |
|
|
Button |
1 |
|
Indicator |
2 |
|
Installation |
Surface mounting |
|
Working Mtemperature |
-40° C to +55° C(-40° F to 131° F) |
|
Working Mhumidity |
10% to 95% |
|
Indicator |
2 |
|
Weight |
265g |
|
Protective Level |
IP65 |
|
Power Supply Method |
IEEE802.3af, standard PoE 12 VDC |
|
Dimensions |
138 mm × 65 mm × 27 mm |
|
Battery |
/ |
|
Application Environment |
Outdoor |
|
Power Consumption |
＜ 10 W |
