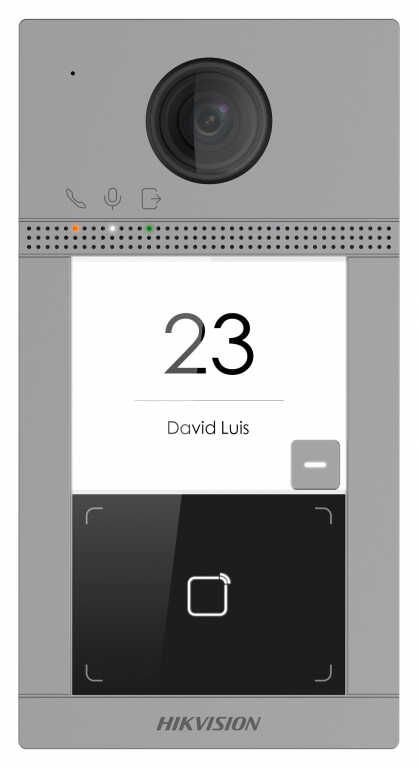

Tek Butonlu Dış Mekan Görüntülü İnterkom Kapı Zili (Wİ-Fİ) DS-KV8113-WME1

System Parameters

Operation System

Embedded Linux Operation System

Operation Method

Single-Button

Flash

32 MB

RAM

256 MB

Video Parameters

Camera

2MP HD Kamera

Night Vision

Low İllumination IR Supplement Mode :3m

BLC

Support

DNR

Support

WDR

True WDR

Field of View

Horizontal: 129°  Vertical: 75°

Video Compression Standard

H.264

Stream

Main stream: 1080p@30fps, 720p@25fps Sub Stream: D1@25fps

Resolution

Main stream: 1920×1080p, 720p Sub Stream: 704×576

Motion Detection

Support

Anti-Flicker Frequency

50 Hz, 60 Hz

Audio Parameters

Audio İntercom

Two-way Audio Communication

Audio İnput

Built-in Omnidirectional Microphone

Audio Output

Built-in Loudspeaker

Audio Compression Standard

G.711 U

Audio Compression Rate

64 Kbps

Audio Quality

Noise Suppression And Echo Cancellation

Network Parameters

Wired Network

10/100 Mbps Ethernet

Network Protocol

TCP/IP, RTSP

Access Control Parameters

Reading Frequency

13.56 MHz

Card Type

Mifare card

Interfaces

RS-485

1

Wi-Fi

2.4G Wi-Fi

Debugging Port

1

TF Card

0

Door Contact İnput

1

Exit Button İnput

1

Grounding

1

Physical Button

1

TAMPER Switch

1

Door Control

1, breakdown voltage: 36 V

Performances

Card Capacity

Max. 10000

User Capacity

Max. 2000

Linked Indoor Station

Max. 4

Linked Sub Door Station

Max. 16

Linked Doorphone

Max. 8

Protocol

ISAPI, RTSP, STMP, SNMP

Unlock Door

Unlock by presenting cards, unlock via Client Software, unlock via App, unlock via indoor station

General

Protection Level

IP65, IK08

Indicator

3

Power Supply

IEEE802.3af, standard PoE12 VDC

Power Consumption

＜  10 W

Working Temperature

-40° C to 53° C(-40° F to 127.4° F)

Working Humidity

10% to 95%

Installation

Surface mounting/ Flush mounting

Dimension

174mm×91mm×29 mm
